| Components | INE-150KW-HY | INE-200KW-HY | INE-250KW-HY | INE-500KW-HY | |
| 450W Solar Panel | 336 Pcs | 448 Pcs | 560 Pcs | 1120 Pcs | |
| Hybrid Inverter | PWS1-150K-NA | PWS1-200K-NA | PWS1-250K-NA | PWS1-500KTL-NA | |
| Combiner Box(8 inputs 1 outputs) | 3 Pcs | 4 Pcs | 5 Pcs | 10 Pcs | |
| Battery (Lithium / Lead acid) | 300KW(adjustable) | 400KW(adjustable) | 500KW(adjustable) | 1000KW(adjustable) | |
| DC Cable 4mm2 | 800 meter | 800 meter | 1000 meter | 1500 meter | |
| MC4 Connector | 60 Set | 80 Set | 100 Set | 200 Set | |
| Mounting System | Metal Roof/Tile Roof/Tilt Mounting/Ground Mounting | ||||
| PV Tools | 1 Set | ||||
* Above information is for reference only, specific configuration is depend on customer's requirement and in accordance with the actual order.

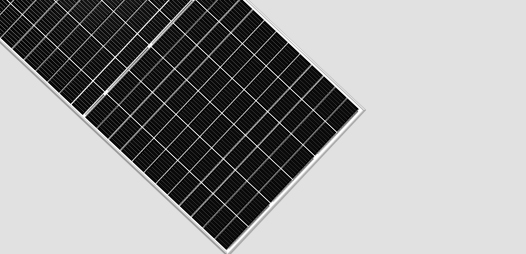

Tolerance: 0~5W
Application Class: Class A
Maximum System Voltage: 1000VDC/1500VDC
Operating Temperature: -40℃~+85℃
Maximum Series Fuse Rating: 20A
Warranty: 12 years quality warranty

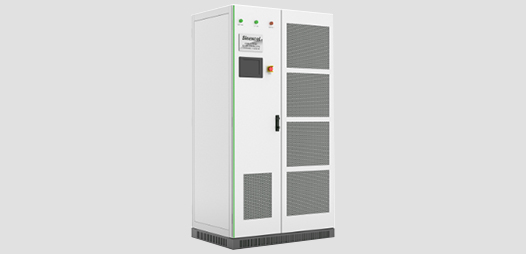

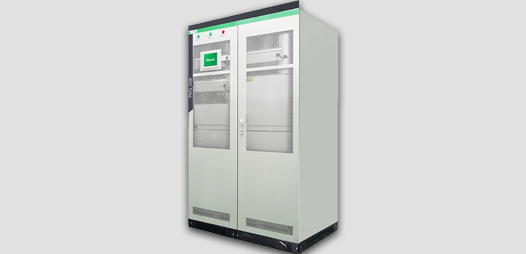

PV Input Power: 150/250/500KW
AC Voltage Range: 380/400/480V
Battery Voltage range: 500~900V
PV Max Current: 330/550/873A
AC connection: 3 Phase
Display: Touch Screen
Warranty: 5-10 years
PV input voltage:250~840V
PV input current: 0~120A×8
Power Rating: 50kW×8
Battery Voltage : 250~840V
Size: 1100×2060×800mm
Weight:600kg

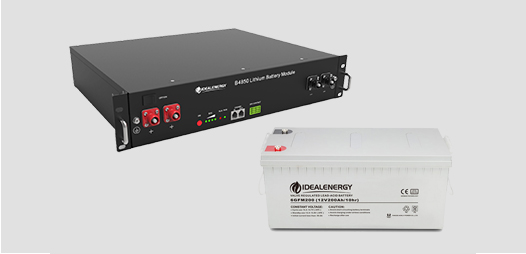

Type:Lithium Battery
Voltage:48V
Capacity:50Ah
Type:Lead acid Battery
Voltage:12V
Capacity:200Ah

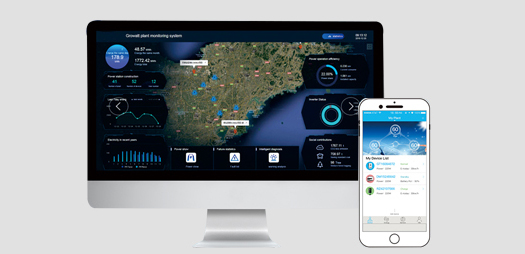

Real-Time Display
Years of Historical Data
Functionality Control
View Financial Savings
Plug & Play Installation
Email System Alerts

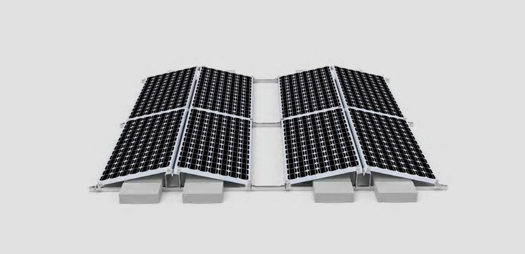

Model Type: Roof/Ground
Material: Al6005 & SUS304/316 & HDG
Mid & End Clamp: 35,40,45,50mm
Application: Residential/Commercial/Industrial
Packing: Wooden Box and Wrapping Film
Warranty: 10 Years Warranty

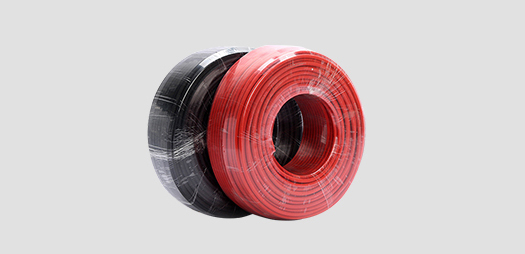

Model Type: PV1-F
Cross Section: 4mm2, 6mm2, 10mm2
Rated Voltage: AC 600/1000V, DC 1800V
Color: Black & Red
Warranty: 10 years quality warranty
Life Span: At least 25 years

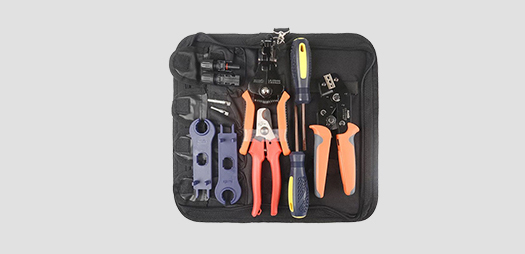

PV Connector Crimper
Wire Cable Cutter & Stripper
PV Connector Spanner
Cross Screwdriver
