| Product Type | INE-120KW-OFF | INE-150KW-OFF | INE-180KW-OFF | INE-200KW-OFF | INE-250KW-OFF |
| 320W Mono Solar Panel | 320 Piece | 384 Piece | 480 Piece | 576 Piece | 640 Piece |
| Off Grid Inverter | 120KVA | 150KW | 180KW | 200KW | 150KW |
| MPPT Controller | 2*360V 200A | 2*360V 200A | 4*360V 200A | 4*360V 150A | 4*360V 150A |
| Combiner Box | 8*4 in 1 out | 8*4 in 1 out | 12*4 in 1 out | 16*4 in 1 out | 16*4 in 1 out |
| 12V 200AH Battery | 90 Piece | 120 Piece | 150 Piece | 240 Piece | 270 Piece |
| PV cable | 800 Meters | 800 Meters | 800 Meters | 1000 Meters | 1000 Meters |
| Battery Cable | 92 Piece | 122 Piece | 152 Piece | 242 Piece | 272 Piece |
| MC4 Connector | 30 Set | 30 Set | 30 Set | 50 Set | 50 Set |
| PV Tools | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set |
| Mounting System | Metal Roof/Tile Roof/Tilt Mounting/Ground Mounting | ||||
* Above information is for reference only, specific configuration is depend on customer's requirement and in accordance with the actual order.

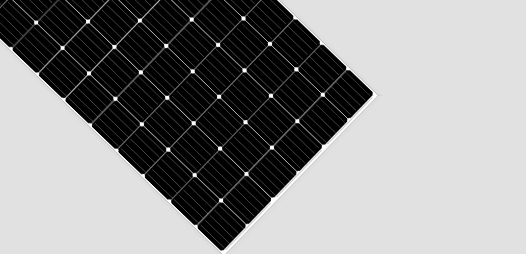

Rated Maximum Power: 380W (INE-380-72M)
Maximum Power Voltage: 36.97V
Maximum Power Current: 7.79A
Open Circuit Voltage: 44.69V
Short Circuit Current: 8.26A
Dimensions:1956X992X40mm
Weight:22.5 kg

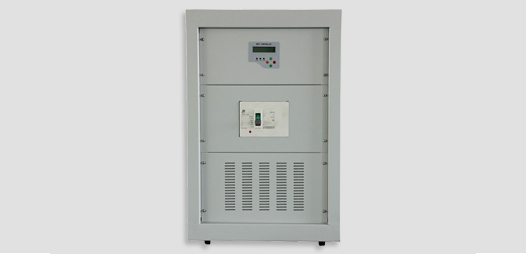

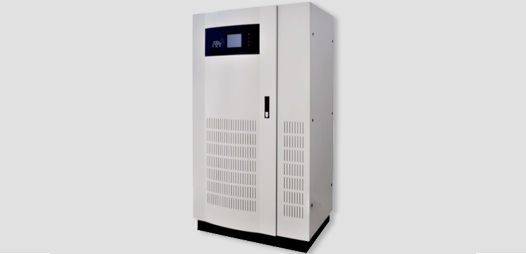

Rate power:40/50/60/80/100/120/150/180/200/250KW
Phase:Three phases+N+G
Rated DC voltage(VDC): 220/360
Nominal Voltage :380VAC±1%(Static load)
Inverter Efficiency:≧90%
Communication:RS232/RS485
Rated Voltage (VDC):360
Rated charging current:50-200
Maximum PV open-circuit voltage:720
Input paths(maximum): 4
Protection level: IP 20
Dimension(WxHxD)mm : 440*440*660
Weight(Kg) : 32-40
Color:White/Grey

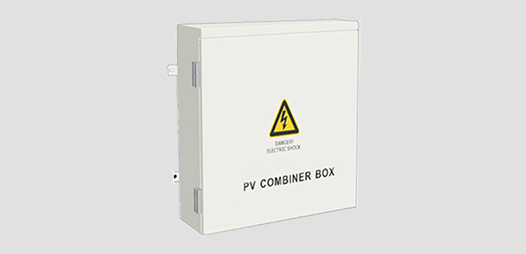

Product name:PV combiner box
Connection:2,4,6,8,10,12,14,16,20,24 Ways
Character:With monitor,thunder-proof,water-proof
Rated working current:UP TO 250A
Protection Level:IP65
BOX Material:Iron Steel

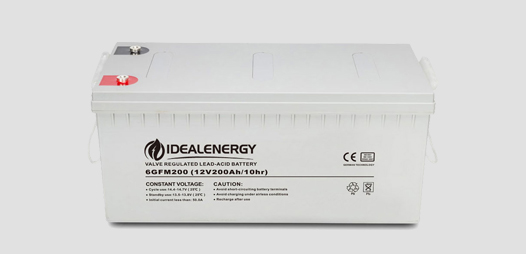

Cells Per Unit:6
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
Design Life: 10-15 years
Capacity: 200Ah@10hr-rate to 1.80V per cell
@25°C

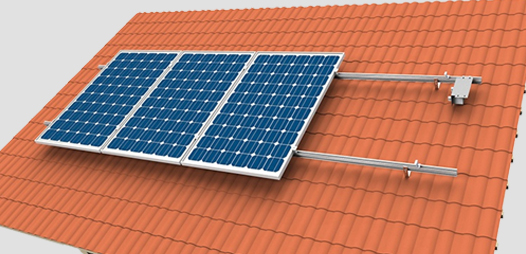

Design Standard：AS/NZS 1170,DIN 1055,
JIS C 8955
Material: AL 6005-T5,SUS 304,Q235B
Fastener: SUS304
Small Components:Al6005-T5(Anodized)
Color:Silver or Customized
Warranty:10-Year Warranty

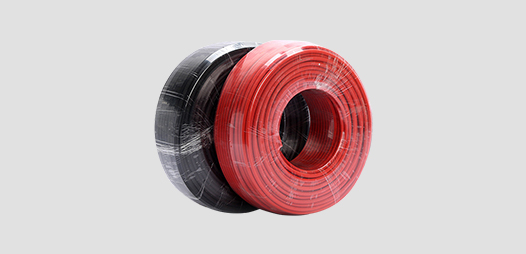

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.

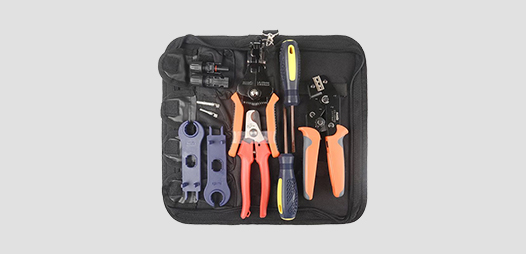

Wire Cable Cutter and Stripper,
MC3 MC4 Crimping Tools
MC4 Connectors Assembly
Disassembly Tool
